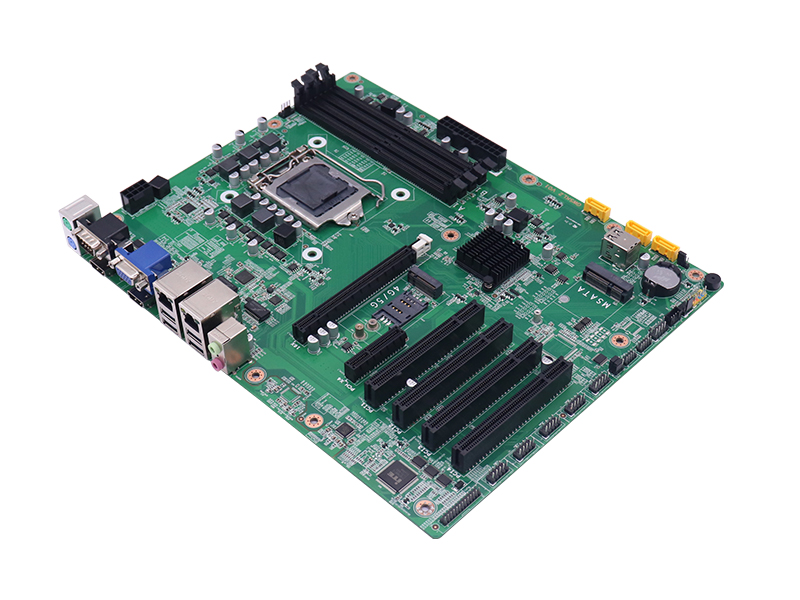

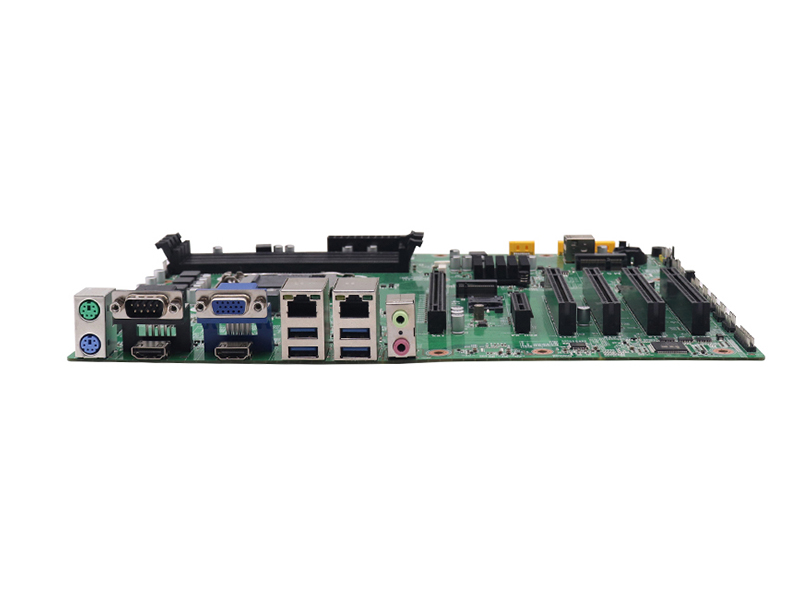

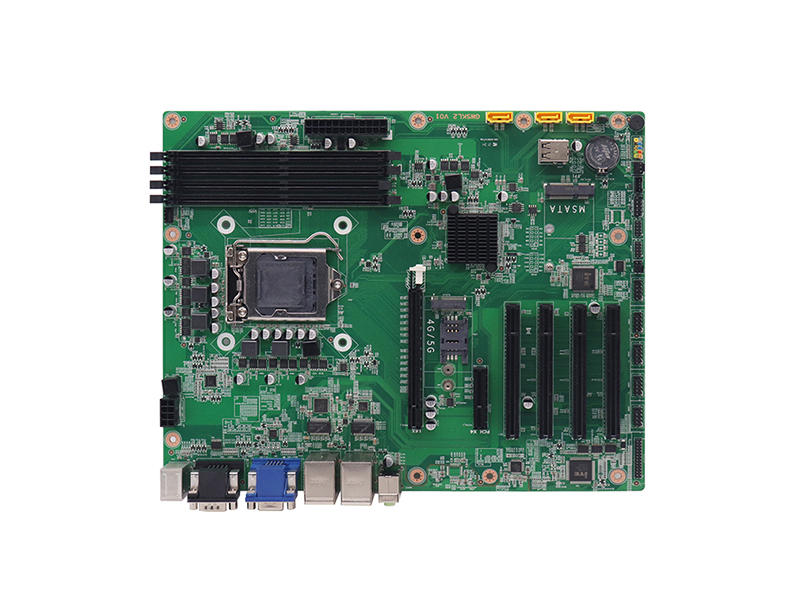

LGA1151 Industrial Motherboard | 6th–9th Gen Intel Core i3/i5/i7 | Triple Display | PCIe/PCI Expansion | Dual LAN | 128GB DDR4
Use Cases:
Designed for industrial automation, CNC systems, industrial control cabinets, AI vision systems, and embedded applications requiring multiple COM/LAN and expansion slots.
This high-performance industrial motherboard supports 6th, 7th, 8th, and 9th Gen Intel® Core™ i3/i5/i7 processors (LGA1151 socket), delivering outstanding computing power for automation control, machine vision, data acquisition, and other industrial applications.
Equipped with 4×DDR4 SODIMM slots, it supports up to 128GB RAM to meet the demands of multitasking and large memory workloads. It offers triple display output via 1×VGA and 2×HDMI ports, supporting both synchronous and asynchronous display modes — ideal for control panels and monitoring systems.
For storage, it supports 3×SATA ports for 2.5″/3.5″ HDD or SSD. It includes 2×Intel I211 Gigabit Ethernet ports for fast, stable network communication, and 6×COM ports (RS232/RS485 selectable), enabling connection to a wide range of serial devices.
Expansion is highly flexible with:
-
4×PCI slots
-
1×PCIe x16 slot
-
1×PCIe x4 slot
Additional interfaces include 8×USB ports for peripheral connectivity. The board operates on a wide-range 19–35V DC input, suitable for rugged and variable voltage environments.
Specifications Overview:
-
CPU Support: Intel® Core™ i3/i5/i7, 6th–9th Gen (LGA1151)
-
Memory: 4×DDR4 SODIMM, up to 128GB
-
Display: 1×VGA, 2×HDMI (supports triple independent/synchronous display)
-
Network: 2×Intel I211 Gigabit LAN
-
Storage: 3×SATA (supports 2.5″/3.5″ drives)
-
USB Ports: 8×USB
-
Serial Ports: 6×COM (RS232/RS485 selectable)
-
Expansion: 4×PCI, 1×PCIe x16, 1×PCIe x4
-
Power Input: DC 19–35V
-
Dimensions: 30.5cm × 24.5cm
